The Best Spray-On Truck Bed Liners: 5 DIY Kits for Trucks Compared

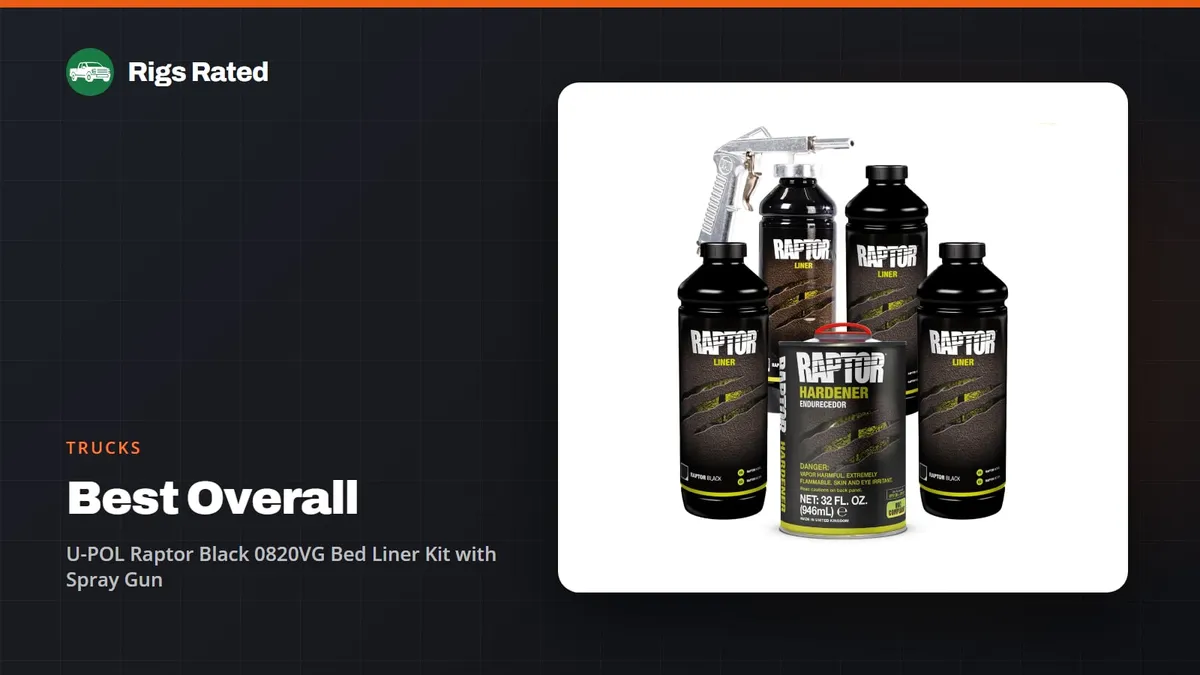

Raptor liner is the name DIY bed coating conversations keep coming back to, and this 0820VG kit is the current version of that formula with the spray gun included. It earns Best Overall because it hits the middle of every tradeoff: professional-grade 2K urethane chemistry, a controlled bottle mixing system, and a total cost that undercuts a professionally sprayed LINE-X bed by hundreds of dollars.

The core difference from cheaper coatings is the two-component cure. Rattle can products like the Herculiner aerosol in this guide dry by evaporation and stay relatively soft. Raptor crosslinks with an isocyanate hardener, so the cured film shrugs off dragged lumber, tool boxes and firewood in a way single-part coatings cannot. U-POL also formulates it to be UV stable, which matters because faded, chalky beds are the most common complaint with budget liners.

The bottle system is the practical win. Each quart bottle takes one pouch of hardener, you shake it, thread the included gun on top and spray. There is no ratio math and no half-mixed batch going off in a mixing cup while you work.

The honest limitation is equipment and coverage. You need a compressor that can hold about 40 to 60 psi at the gun, plus an organic vapor respirator. And four quarts is genuinely a midsize-bed quantity: a Tacoma or Ranger bed gets two solid coats, but an F-150 6.5 foot bed will come up short if you spray rails and tailgate.

Buy this if you have the gear and a standard bed. If you are coating a full-size or want extra for rocker panels, step up to the 8 quart Custom Shop kit. If you have no compressor at all, the Custom Coat gallon kit has the same problem, so look at the Herculiner aerosol for small jobs instead.

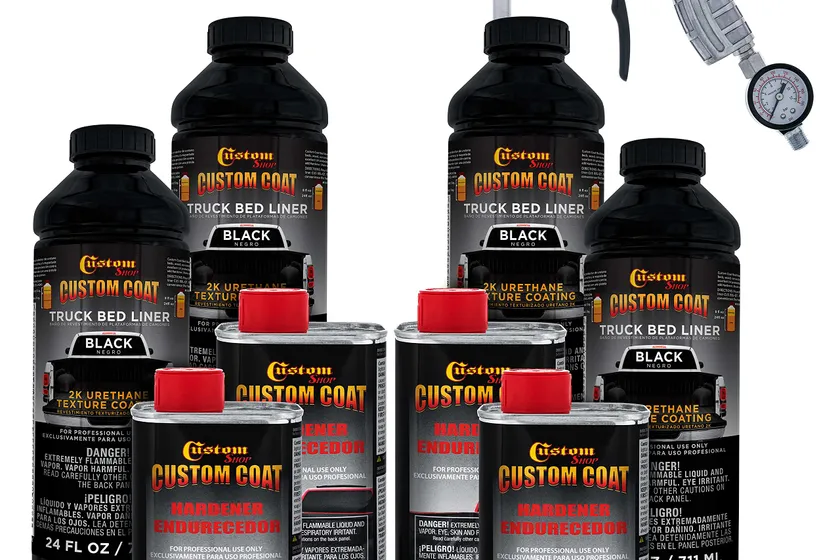

The Custom Coat kit wins Best Budget by a simple math problem: it delivers a full gallon of two-part urethane, a spray gun and a regulator for less than most 4 quart kits cost. Per square foot of cured liner, nothing else in this guide comes close.

It solves the same problem as the Raptor 0820VG, protecting bare or scratched bed metal from rust, dents and cargo abuse, using the same basic chemistry. The base mixes with hardener at an easy 3 to 1 ratio inside the bottle, then you shake it and shoot it through the included gun. The regulator is a genuinely useful inclusion, because dialing pressure at the gun instead of at the compressor is how you keep the texture even from the first panel to the last.

The honest limitation is pedigree. U-POL has decades of Raptor liner on work trucks, off-road builds and farm equipment, with the long-term owner reports to match. Custom Coat is a value brand, and while its owner feedback is strong, there is simply less evidence about how the finish looks in year eight. Its UV story is also less explicit than Raptor’s fade-free claims, so a dark garage-kept truck is a safer bet than a sun-baked work rig.

Application also leans a bit more on you. The Raptor bottle system meters everything; here, keeping texture consistent across a whole bed takes a steady pass speed and some scrap-panel practice first.

Buy this if you want maximum coverage on a real budget and already own a compressor. Pick the Raptor 0820VG if you value the proven formula, or the Herculiner aerosol if compressor ownership is the whole sticking point.

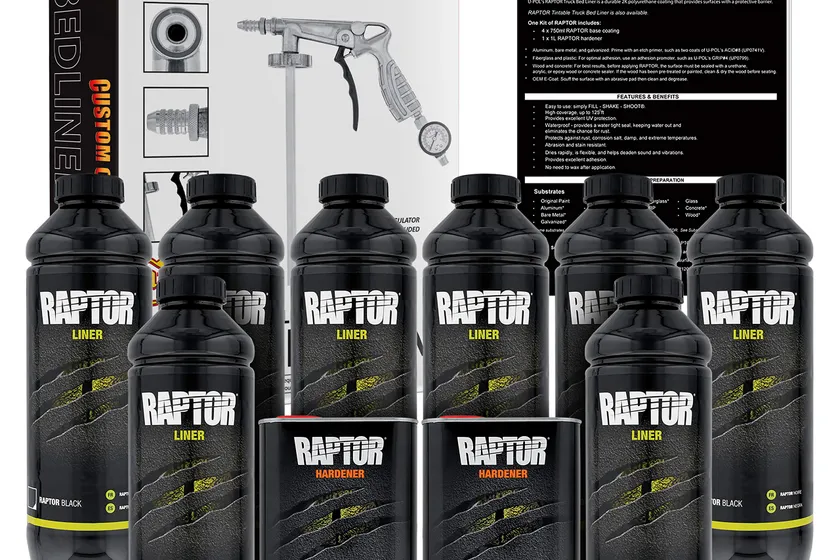

The most common DIY bed liner mistake is running out of product halfway through the second coat. This Custom Shop bundle exists to prevent exactly that: it is the same U-POL Raptor black urethane as our Best Overall pick, but with eight quarts in the box instead of four, plus a spray gun and regulator.

The math is what makes it win this award. A full-size 6.5 foot bed has roughly 85 to 100 square feet of surface once you count the floor, walls, wheel wells, rails and the inside of the tailgate. Two coats at proper film thickness pushes past what a 4 quart kit can deliver. Eight quarts covers it with margin, and most owners end up with a bottle or two spare for rocker panels or a utility trailer.

The formula itself is the reason to stay in the Raptor family rather than just buying two bargain kits. It is a true 2K urethane that crosslinks hard, resists fuel and chemical spills, and holds its color in the sun, which is where cheaper coatings and the Herculiner aerosol eventually chalk out.

The limitation is cost and planning. This is the most expensive kit in the guide, and once a bottle is mixed with hardener you are on the clock, so a solo sprayer should mix two bottles at a time rather than all eight. It is also genuinely too much product for a Tacoma or Ranger.

Buy this for any full-size or long bed truck, or if you want one purchase to cover bed plus extra panels. Midsize owners should take the standard 4 quart Raptor kit and pocket the difference.

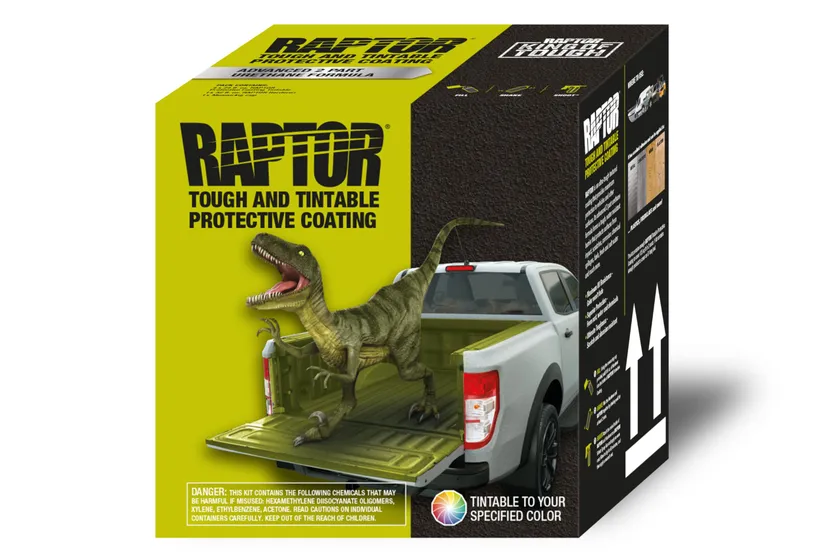

Every other pick in this guide sprays out black. The Raptor 0821V is the one that does not have to. It is a tintable base version of the same 2K urethane as our Best Overall pick: add up to 10 percent compatible automotive tint, and the liner cures in whatever color you mixed, with the same gouge resistance and UV stability underneath.

That single difference is why it wins the color matching award. Owners of white work trucks, gray fleet trucks or anything with a two-tone scheme can bring their paint code to an auto paint store, buy a small quantity of tint, and end up with a bed, rocker panels or flares that look factory-finished rather than patched with black. It is also the kit of choice for the growing crowd spraying entire truck exteriors in liner, where black is often exactly what they do not want.

The tradeoffs are real. Unlike the 0820VG, no spray gun ships in the box, so add a Raptor-compatible gun to the cart or the kit is unusable. Color matching is only as good as the tint you buy and how carefully you measure it, and light colors over dark, scarred bed metal can take a third coat to look uniform, which eats into the 125 square foot coverage figure.

Buy this if color is part of the plan. If you simply want durable black protection, the standard Raptor kit or the Custom Coat gallon deliver that with less shopping, and the Herculiner aerosol covers quick black touch-ups.

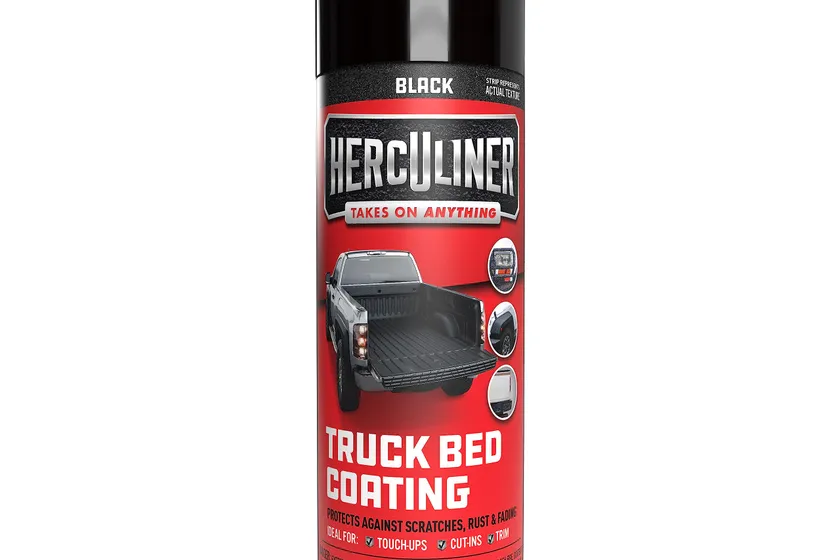

Not every bed liner job is a whole bed. The Herculiner aerosol exists for the other jobs: the gouge where a mower deck slid, the worn strip at the tailgate lip, the bumper top that gets stood on. It is the only pick in this guide that needs zero equipment, which is exactly why it earns the touch-up award.

What makes it different is the format. The Raptor and Custom Coat kits are two-part urethanes that demand a compressor, a respirator and a free weekend. This is a 15 ounce rattle can with a textured black formula designed to mimic the look of Herculiner’s well-known roll-on product. Shake it, spray light passes from about a foot away, recoat after 30 minutes, and let it dry overnight. Owner feedback consistently notes how well the texture disappears into existing spray-in liners, which is the hard part of any patch job.

The limitation is that convenience caps performance. A single-part aerosol dries by solvent evaporation, so the cured film is softer than crosslinked 2K urethane and will wear through faster under dragged cargo. Coverage of 6 to 7 square feet per can makes full-bed use a false economy: a dozen cans would cost more than the Custom Coat gallon kit and protect worse. Sun exposure is the other weak point, with fading likely ahead of surrounding professional liner.

Buy a can or two for repairs, tailgates and small panels, or to refresh a tired factory liner’s look. For a full bed, step up to the Raptor 0820VG or the Custom Coat gallon and do it once properly.
